Descriptions :

• Battery Configuration: 4S for LiFePO4 (LFP) batteries
• Continuous Discharge Current: 30A
• Over-Voltage Protection: 3.8V
• Balancing Current: 50mA
• Temperature Protection: Over-temperature and under-temperature protection
• Short Circuit Protection: Yes, with auto recovery
• Charge Voltage: 14.6V

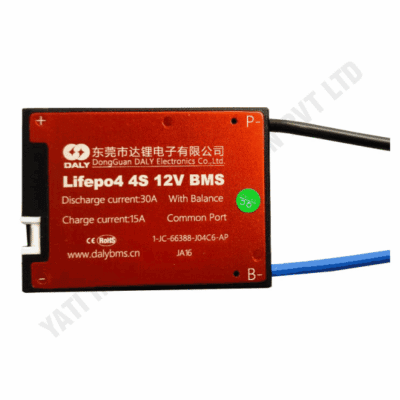

• Features: Overcurrent, overcharge, over-discharge, and temperature protectionThe BMS LFP 04S/30A Same Port W/P (DALY) is a Battery Management System designed for 4-series (4S) Lithium Iron Phosphate (LFP) batteries. It supports a continuous current of 30A and features a same-port design, meaning charging and discharging share the same connection point. The BMS is waterproof (W/P), enhancing its reliability in outdoor or harsh environments. Manufactured by DALY, it includes essential protections such as overcharge, over-discharge, overcurrent, and short-circuit safeguards. This BMS is ideal for use in e-bikes, solar energy systems, and other portable power applications.
