Descriptions :

• Battery Configuration: 4S for LiFePO4 (LFP) batteries
• Continuous Discharge Current: 100A
• Over-Voltage Protection: 3.8V
• Balancing Current: 50mA
• Temperature Protection: Over-temperature and under-temperature protection
• Short Circuit Protection: Yes, with auto recovery
• Charge Voltage: 14.6V

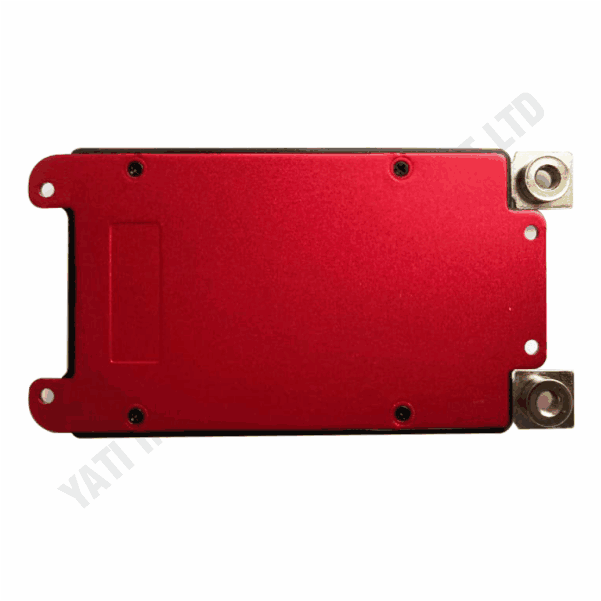

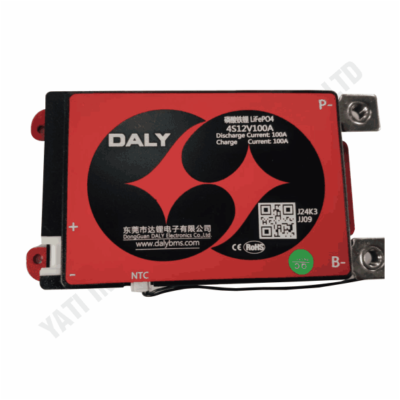

• Features: Overcurrent, overcharge, over-discharge, and temperature protectionThe BMS LFP 04S/100A Same Port W/P (DALY) is a robust Battery Management System designed for 4-series (4S) Lithium Iron Phosphate (LFP) battery packs. It supports a continuous current of 100A with a same-port design, enabling both charging and discharging through the same connection point. The waterproof (W/P) build ensures reliable performance in outdoor and harsh environments. Manufactured by DALY, this BMS features advanced protections, including overcharge, over-discharge, overcurrent, and short-circuit safeguards, making it suitable for high-power applications like e-bikes, solar energy systems, and energy storage solutions.
