Descriptions :

• Battery Configuration: 16S for LiFePO4 (LFP) batteries
• Continuous Discharge Current: 100A
• Over-Voltage Protection: 3.8V
• Balancing Current: 50mA
• Temperature Protection: Over-temperature and under-temperature protection
• Short Circuit Protection: Yes, with auto recovery
• Charge Voltage: 58.4V
• Features: Overcurrent, overcharge, over-discharge, and temperature protection

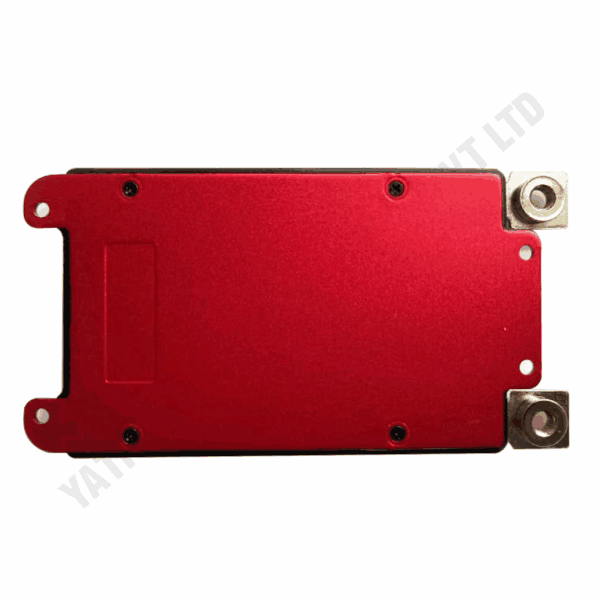

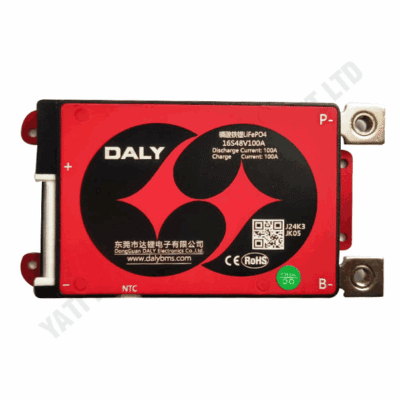

  The BMS LFP 16S 100A SAME PORT W/P DALY is a high-performance battery management system designed for 16-series lithium iron phosphate (LFP) batteries. With a continuous current rating of 100A, it is ideal for high-power applications, such as electric vehicles, large-scale energy storage systems, and industrial uses that demand substantial power. The “Same Port” feature allows both charge and discharge connections to be made through the same port, simplifying the system’s wiring. The “W/P” denotes built-in protection functions, including safeguards against overcharge, over-discharge, short circuits, and overcurrent, ensuring the safe operation, longevity, and efficient performance of the battery. Manufactured by DALY, this BMS is known for its reliability and performance in managing LFP battery packs.
