Descriptions :

• Battery Configuration: 4S for LiFePO4 (LFP) batteries
• Continuous Discharge Current: 10A
• Over-Voltage Protection: 3.8V
• Balancing Current: 50mA
• Temperature Protection: Over-temperature and under-temperature protection
• Short Circuit Protection: Yes, with auto recovery
• Charge Voltage: 14.6V

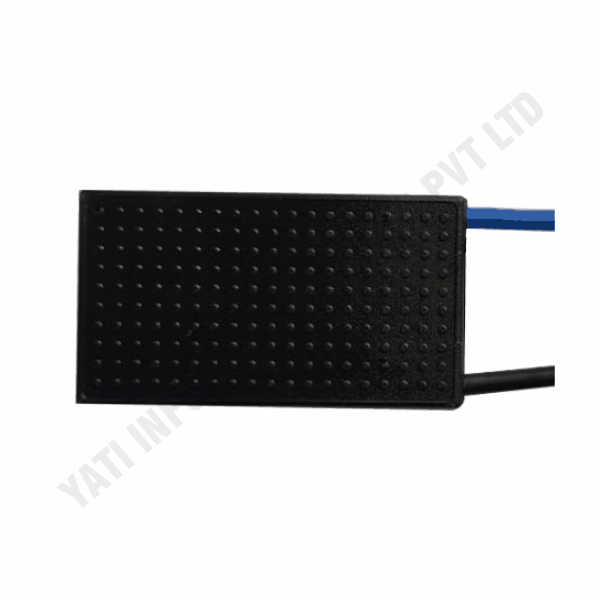

• Features: Overcurrent, overcharge, over-discharge, and temperature protectionThe BMS LFP 04S10A W/P DALY is a Battery Management System (BMS) designed for Lithium Iron Phosphate (LFP) batteries with a 4S (4 series) configuration. It supports a maximum continuous current of 10A and is equipped with a waterproof (W/P) design for enhanced durability in outdoor or challenging environments. Manufactured by DALY, this BMS ensures the safe and efficient operation of LFP battery packs by providing features like overcharge, over-discharge, overcurrent, and short-circuit protection. Its compact and reliable design makes it suitable for applications such as e-bikes, solar energy systems, and portable power solutions.
