Descriptions :

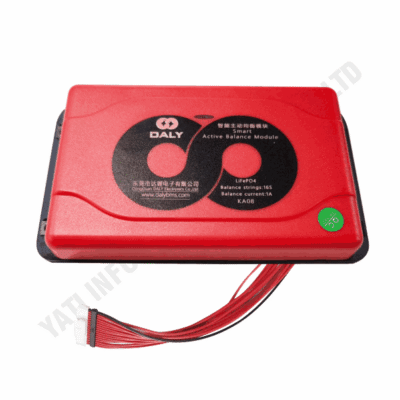

Daly 16S-1Amp

Daly 16S-1Amp Active Balancer is an advanced and reliable solution designed to enhance the performance, lifespan, and safety of lithium battery systems. Whether you’re building a battery pack for energy storage, solar power, or electric mobility, this device ensures consistent voltage levels across all cells—making it a crucial component for any high-efficiency setup.

Unlike passive balancers, which simply burn off excess energy as heat, the Daly 16S Active Balancer employs active energy transfer technology. In other words, it actively redistributes charge from higher-voltage cells to those with lower voltage. As a result, the entire battery pack remains better balanced, significantly reducing stress on individual cells and extending the overall cycle life.

Moreover, the 1A balancing current offers faster equalization compared to lower-current models. This is especially important for larger battery packs, where imbalance can lead to reduced efficiency or even system failure. With its real-time monitoring and automatic adjustment, this balancer keeps your cells synchronized during both charging and discharging cycles.

In addition, the Daly 16S Active Balancer is compatible with various lithium chemistries, including Li-ion (3.7V) and LiFePO₄ (3.2V). It operates efficiently within a wide voltage range of 2.0V to 4.2V per cell, making it a versatile choice for many custom and commercial battery builds.

Not only is it compact and lightweight, but it’s also easy to install with standard JST/XH connectors. Furthermore, it offers built-in protections such as reverse polarity and over-voltage safeguards, adding an extra layer of safety.

Specifications:

• Model: Daly Active Balancer 16S – 1A

• Cell Configuration: 16 Series (16S)

• Balancing Current: 1 Amp

• Supported Battery Types:

  • Li-ion (3.7V nominal)

  • LiFePO₄ (3.2V nominal)

• Balancing Method: Active energy transfer

• Voltage Range per Cell: 2.0V – 4.2V

• Operating Temperature: -20°C to +60°C

• Dimensions: Approx. 90mm x 60mm x 12mm

• Weight: ~150g

• Connector Type: JST/XH (typically 2.54mm pitch)

• Protection: Reverse polarity and over-voltage protection
